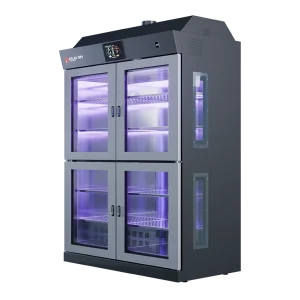

ADC-1400-CC
Conformal Coating Cabinet
Controlled Drying and Curing Environment for Conformal Coating Applications
- Internal Volume
- 1280 Lt
- Width x Height x Depth (External)
- 1490cm x 2010cm x 795cm
- Width x Height x Depth (Internal)
- 11363cm x 11512cm x 618cm
- With Extraction Unit
- Width x Height x Depth (External)
- 1490cm x 2232cm x 795cm
The Atlas Dry Conformal Coating Cabinet ADC-1400-CC Series is designed to provide a controlled environment for drying and curing conformal coatings applied to printed circuit boards (PCBs). The enclosed cabinet maintains stable temperature and humidity conditions that support consistent coating performance and reliable curing results.
By protecting coated boards from dust, moisture, and environmental fluctuations, the cabinet helps ensure uniform coating formation and reduces the risk of contamination during the curing process.
With its large internal capacity and robust industrial construction, the ADC-1400-CC Series enables safe and organized handling of coated PCBs in electronics manufacturing facilities, SMT production lines, laboratories, and coating preparation areas where controlled curing conditions are essential.
Standard Features
Optional Features
- 1 ea Maintenance-free Drying Unit (PID Control)
- Dynamic regeneration
- Internal humidity & temperature sensor
- 7” TFT Touch Screen Control Panel, 800×480, HMI, NEMA4 / IP66 compliant
- Internet connectivity via Wi-Fi or Ethernet cable
- Remote monitoring system
- Free visualization software for PC
- Microwave PIR motion detector
- ESD safe design compliant with IEC 61340-5-1 standards
- Integrated datalogger with 4GB storage capacity
- 10 x stainless steel shelves
- Door, humidity & temperature alarm

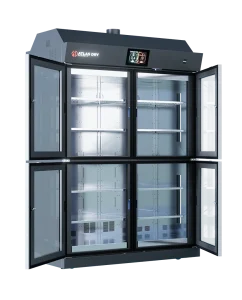

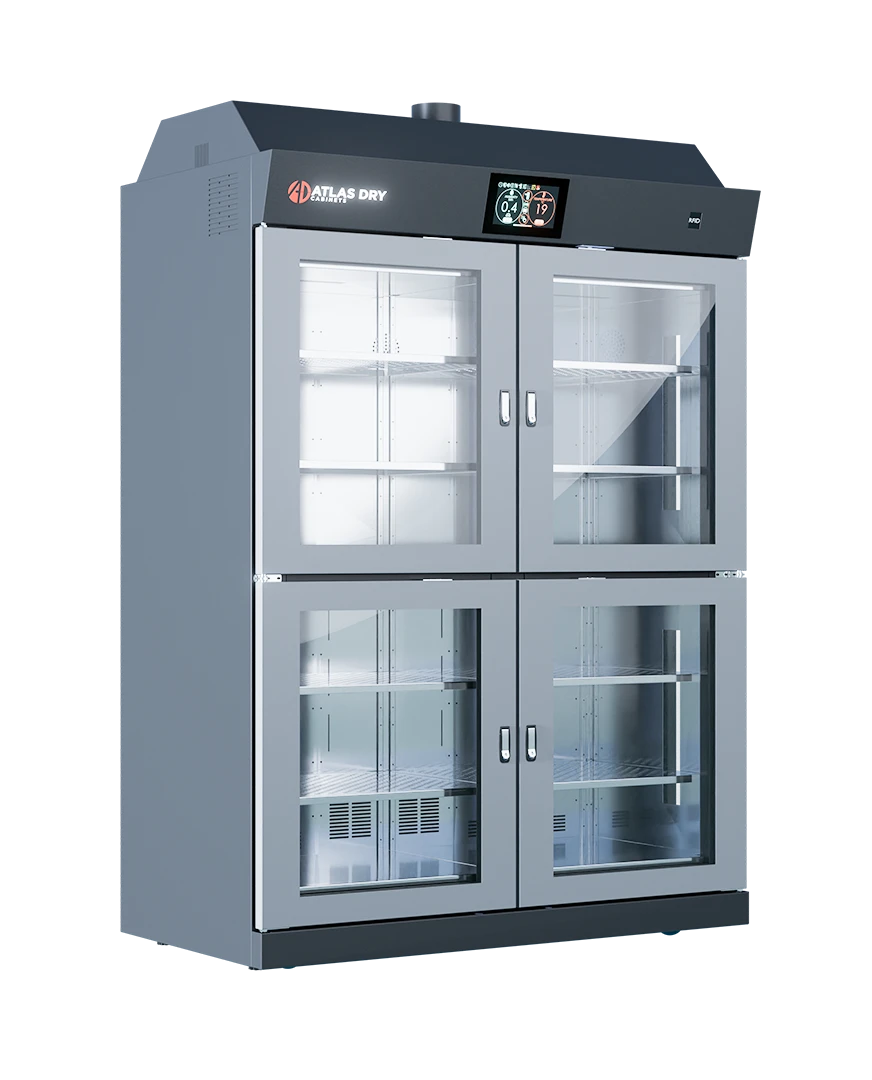

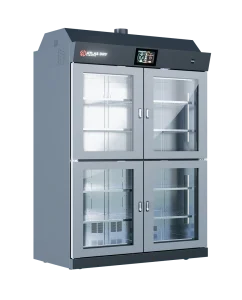

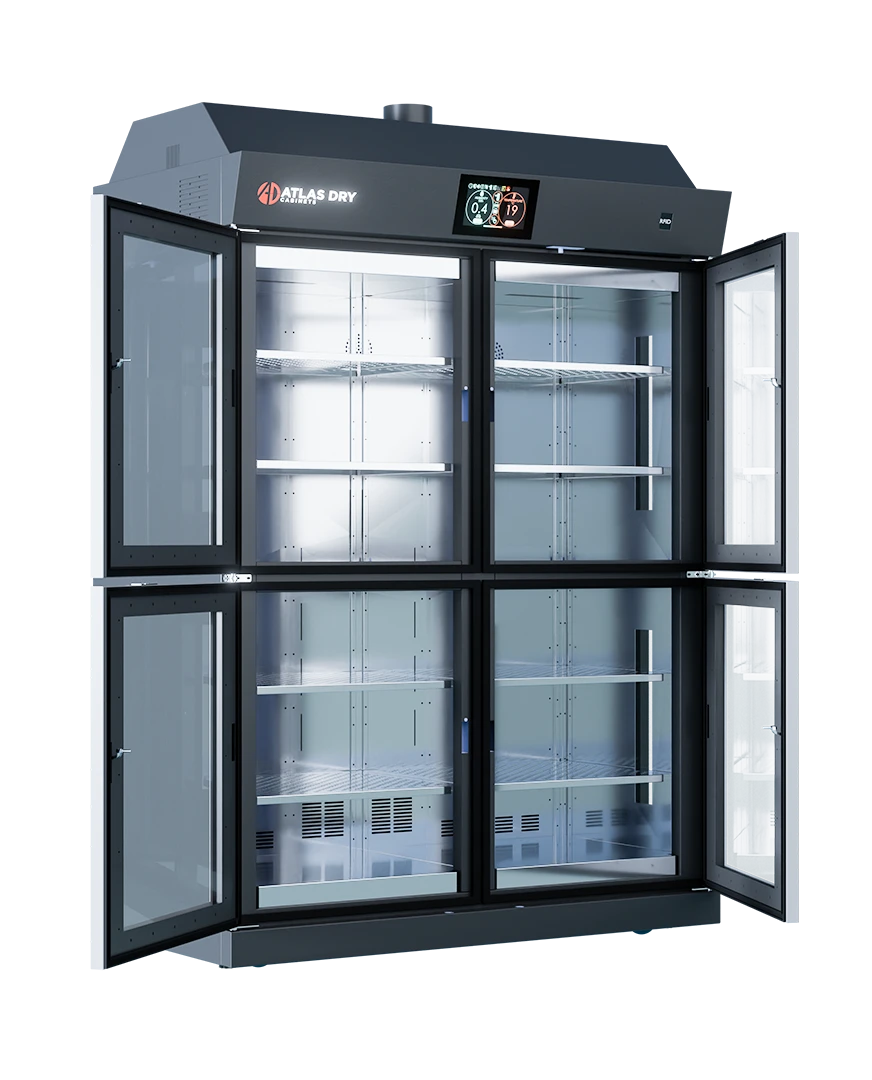

- 4 door with double insulated glass
- Rear stainless steel panels
- 4 x casters (2 lockable)
- 2 adjustable stabilization legs
- Electrostatic painted metal sheet body
- 1280 liters net capacity
- DUAL-DRY-01 – Dual Drying Unit (for faster recovery & redundancy)
- Intelligent Nitrogen Control Unit (INCU) – Adaptive, Demand-Based N₂ Management
- Combined Nitrogen + Dual Drying System (maximum protection & redundancy)
- LT-1400 - Indoor Light
- DL-1400 - Automatic Door Lock (Password protected)
- 45°C, 60°C, 100°C & 130°C Heating Units
- CL-1400-15 - 15 °C Cooling Unit (PID Control)
- SS-1400 - Stainless Steel (SS) Shelf
- SD-1400 - Stainless Steel (SS) Sliding Shelf
- TL-01 - Tower Lamp (3 Light)
- HUM-01 - Humidifier Unit
- RH-01 - Stainless Steel (SS) SMD Reel Holder
- ES-01 - External Environmental Sensor
- PCB-01 - PCB Holder
- RFID-01 - RFID Access
- FP-01 - Finger Print Access
- MSD-01 - Component Tracking Software
- HPA-01 - Hepa Filter Unit-Class 1000 (ISO 6)
- CAF-01 - Carbon Filter
If you need further information about our dry cabinet, download its datasheet below.
